A. Economic type door closer for residential and commercial.
B. Performance standard: QB/T 2698-2013

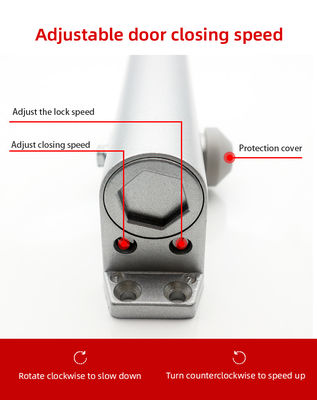

C. Two-stage speed regulation ,adjusting 180°~20°closing speed and 20°~0°force blocking speed.
D. ADC12 environmental production of aluminum alloy casting body

|
45-65 KG Bearing Capacity Aluminum Automatic Door Closer with 2 Speeds and Consumption
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Quảng Đông, Trung Quốc |
| Hàng hiệu: | TAKY |
| Số mô hình: | TK-P008 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100 mảnh |
|---|---|
| Giá bán: | $3.54/pieces 100-499 pieces |
| chi tiết đóng gói: | 1 cái trong hộp inter .10pcs trong hộp bên ngoài 10pcs/carton |
|
Thông tin chi tiết |
|||
| Bảo hành: | 3 năm | Dịch vụ sau bán: | Hỗ trợ kỹ thuật trực tuyến, Kiểm tra tại chỗ |
|---|---|---|---|
| Khả năng giải pháp dự án: | thiết kế đồ họa, giải pháp tổng thể cho các dự án, Khác | Ứng dụng: | Khách sạn |
| Phong cách thiết kế: | Hiện đại | Tên sản phẩm: | Công suất ổ đĩa nhôm 45-65 kg Cửa trọng lượng cửa tự động gần hơn |
| Kiểu: | Cửa đóng cửa | Từ khóa: | Cửa hạng nặng gần hơn |
| Màu sắc: | SMIVER | Trọng lượng cửa tối đa: | 85kg |
| Loại vật phẩm: | Cửa im lặng gần hơn | Cách sử dụng: | Cửa kính thương mại |
| Vật liệu: | Nhôm | Tốc độ: | 2 |
| Chiều rộng cửa tối đa: | 800-1300mm | ||
Mô tả sản phẩm
Product Description
|
Item No.
|
TK-P008
|
|
|
Closing force:
|
EN 3/4/5
|
|
|
Maximum wide door leaf:
|
<800mm
|
|
|
Maximun Opening angle
|
180 degree
|
|
|
Avallable bearing weight:
|
45-65kg
|
|
|
Speed governing control:
|
Two-stage adjustable speed
|
|
|
Orienting Function
|
Non-holding or Hold on is optional
|
|
|
Useful TIme
|
> 500.000times
|
|
|
Net weight
|
1475g
|
|
|
White Aluminium Bearing Capacity 45-65 KG Door weight Automatic Door Closer
|
|
|
Functional
Product Details
E. Power Size EN4/5
F. Positioning Function Optional
G. Back-check function Optional
H. Manufactured under strict observation of EN1154 standard
1.Cycle test: up to 500,000 cycles
2.Hydraulic oil: low-temperature resistance to -60℃
3.Rocker arm: made of good quality carbon steel material, not easily deformed or broken
4.Surface: double painted with anti-corrosion material, 96 hours corrosion resistance
▶ Precise sealed, preventing oil leakage
▶ High quality die-casting aluminum alloy, protected with two-layer bright paint.
▶ Two hydraulic press valves controlling two stage doors closing automatically.

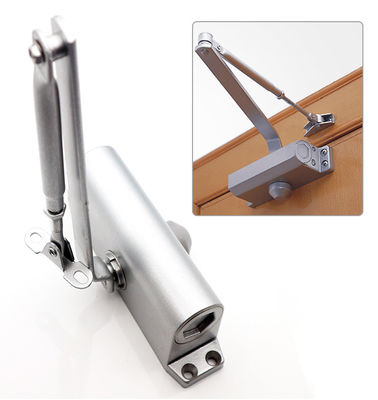

▶It can be installed on the door plate or installed on the doorframe.
★Color: Golden, silver, copper or other kinds of color on client requirements.
★Speed: 90-160 degree locating function is available.
★Packaging: polybag inside, carton box outside,each carton is less than 25kg.(Or according to the customer request)
Strong Gear
Made of 45# high-quality carbon structural steel, the gear part is cold extruded, the gear and the shaft at both ends are quenched, and the surface hardness is more than HRC48, which makes the product more wear-resistant and has a longer service life.

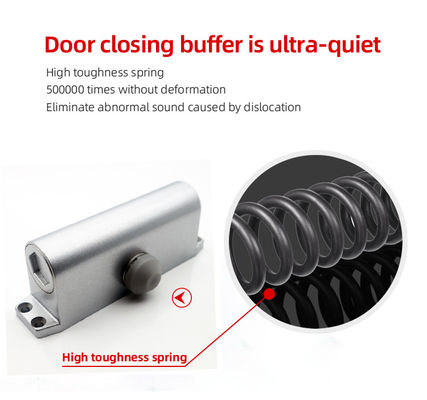

High elastic spring
60-silicon 2 manganese combined alloy springs have more endurance and tension than other carbon steels, ensuring 5 million times of use without deformation
FUCHS Antifreeze oil
The imported FUCHS ensures that the door closer can work better between 40 degrees and 60 degrees, does not erode the sealing ring, has high stability and better lubrication effect.
Seal ring Show
More prominent details of the production, the use of imported German seals, corrosion resistance, the use of temperatures of minus 40 to 100 degrees, more guarantees no oil leakage.
Applications
The door closer is only suitable for one-way casement doors
and is generally not used for frameless glass doors.
Recommend Products
Product packaging
Factory picture
Certifications
Company Profile
FAQ
Q1. Can I have a sample order for door closer ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2-3 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for patch fitting order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for door closer?
1.let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3.y customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Would you accept customized the logo?
A: Yes. MOQ 100 PCS can offer pringting logo free
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty or 500,000times opening and closing.
Q8: How to deal with the faulty?
1.Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
2. during the guarantee period, we will send new ones with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
