A. Economic type door closer of residential and commercial
B. Performance standard: QB/T 2698-2013
C. Two speed control valve,adjusting closing speed and latching speed
D. ADC12 environmental production of aluminum alloy casting body

|

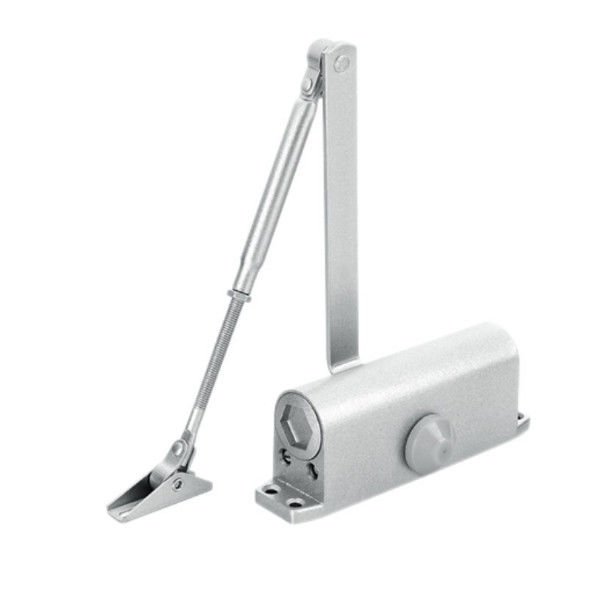

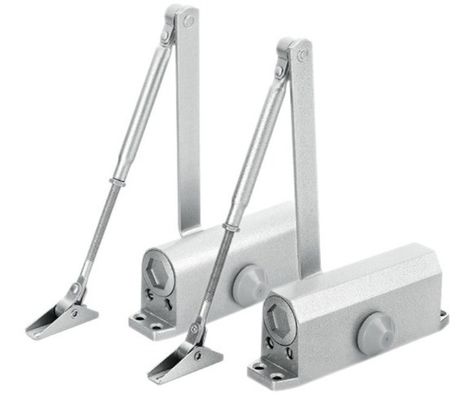

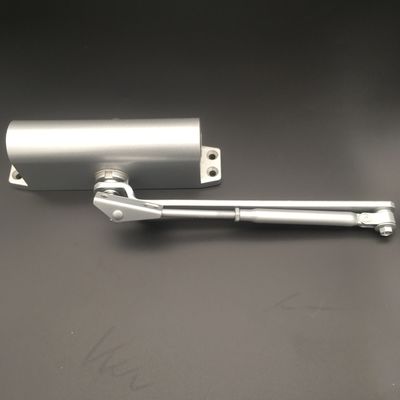

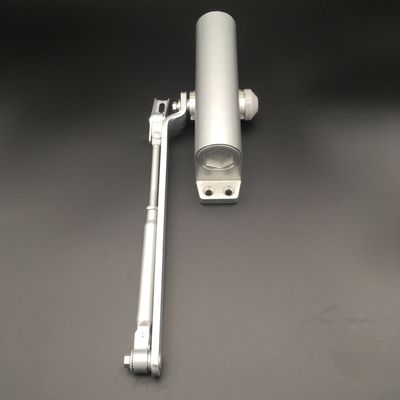

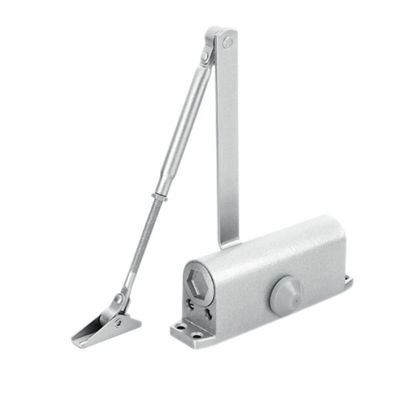

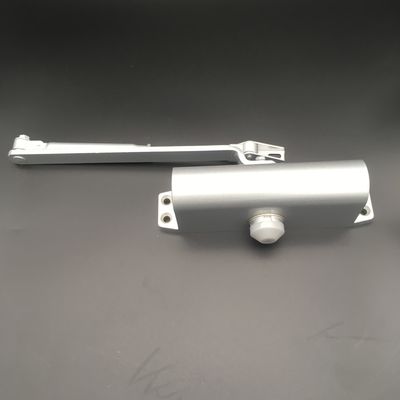

80kg Door Soft Close Door Closer with Heavy Duty Hydraulic System Sliver/Customized
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Quảng Đông, Trung Quốc |
| Hàng hiệu: | TAKY |
| Số mô hình: | TK-051A |
Thanh toán:
| Giá bán: | $10.95/pieces 1-499 pieces |
|---|---|
| chi tiết đóng gói: | 1pcs trong một hộp inter 10 pc trong hộp bên ngoài lớn. |
|
Thông tin chi tiết |
|||
| Bảo hành: | 1 năm | Dịch vụ sau bán: | Hỗ trợ kỹ thuật trực tuyến, trả lại và thay thế |
|---|---|---|---|
| Khả năng giải pháp dự án: | thiết kế đồ họa, Khác | Tên sản phẩm: | Loại Euro loại cửa trượt bản lề mềm hơn |
| Màu sắc: | mảnh hoặc tùy chỉnh | Trọng lượng cửa tối đa: | 40-60kg |
| Ứng dụng: | Cửa lửa | Kích thước cửa: | Hơn 1200mm |
| Nhiệt độ: | -40 độ-60 drgree | Đóng gói: | 1pcs trong một hộp inter 10 pc trong hộp bên ngoài lớn |
| Đã sử dụng: | Tất cả các cửa kim loại & thép & nhựa | Hoàn thành: | Satin đánh bóng |
| Hoạt động: | Ứng dụng an toàn cửa kính tiêu chuẩn gần hơn | ||
Mô tả sản phẩm
Product Description
Function of Door Closer:
◆automatic closing ;
◆closing speed can be adjusted ;
◆ some door closer have the function of staying.
Scope of Application:
The door closer is only suitable for one-way casement doors
and is generally not used for frameless glass doors.
Functional
Product Details
E. Power Size EN4/5
F. Positioning Function Optional
G. Back-check function Optional
H. Manufactured under strict observation of EN1154 standard
1.Cycle test: up to 500,000 cycles
2.Hydraulic oil: low-temperature resistance to -45℃
3.Rocker arm: made of good quality carbon steel material, not easily deformed or broken
4.Surface: double painted with anti-corrosion material, 96 hours corrosion resistance
▶ Precise sealed, preventing oil leakage
▶ High quality die-casting aluminum alloy, protected with two-layer bright paint.
▶ Two hydraulic press valves controlling two stage doors closing automatically.
▶It can be installed on the door plate or installed on the doorframe.
Item No. | TK-051A | |
Closing force: | EN 3/4/5 | |
Maximum wide door leaf: | <1200mm | |
Maximun Opening angle | 180 degree | |
Avallable bearing weight: | 40-60kg | |
Speed governing control: | Two atage adjustable speed | |
Orienting Function | Location or without location is optional | |
Useful TIme | > 500.000times | |
Net weight | 1429g | |
Accord with national QB/T2698-2005 Standard | ||
Inner Quality Show
Strong Gear
Made of 45# high-quality carbon structural steel, the gear part is cold extruded, the gear and the shaft at both ends are quenched, and the surface hardness is more than HRC48, which makes the product more wear-resistant and has a longer service life.
High elastic spring
60-silicon 2 manganese combined alloy springs have more endurance and tension than other carbon steels, ensuring 5 million times of use without deformation
FUCHS Antifreeze oil
The imported FUCHS ensures that the door closer can work better between 40 degrees and 60 degrees, does not erode the sealing ring, has high stability and better lubrication effect.
Seal ring Show
More prominent details of the production, the use of imported German seals, corrosion resistance, the use of temperatures of minus 40 to 100 degrees, more guarantees no oil leakage.
Installation Process
Applications
The door closer is only suitable for one-way casement doors
and is generally not used for frameless glass doors.
Top 8 Things You Should Know About TAKY: | ||
1 .The product base of ISO2000 quality certification | 2. 0.005mm high precision machining | |
3. The most advanced vacuum loading technology | 4. The most advanced automatic printing line | |
5. Pass CE certificate and fireproof testing | 6. Over 500,000 times open and close testing | |
7. More then 96 hours salt spray corrosion test | 8. 100% inspection | |
